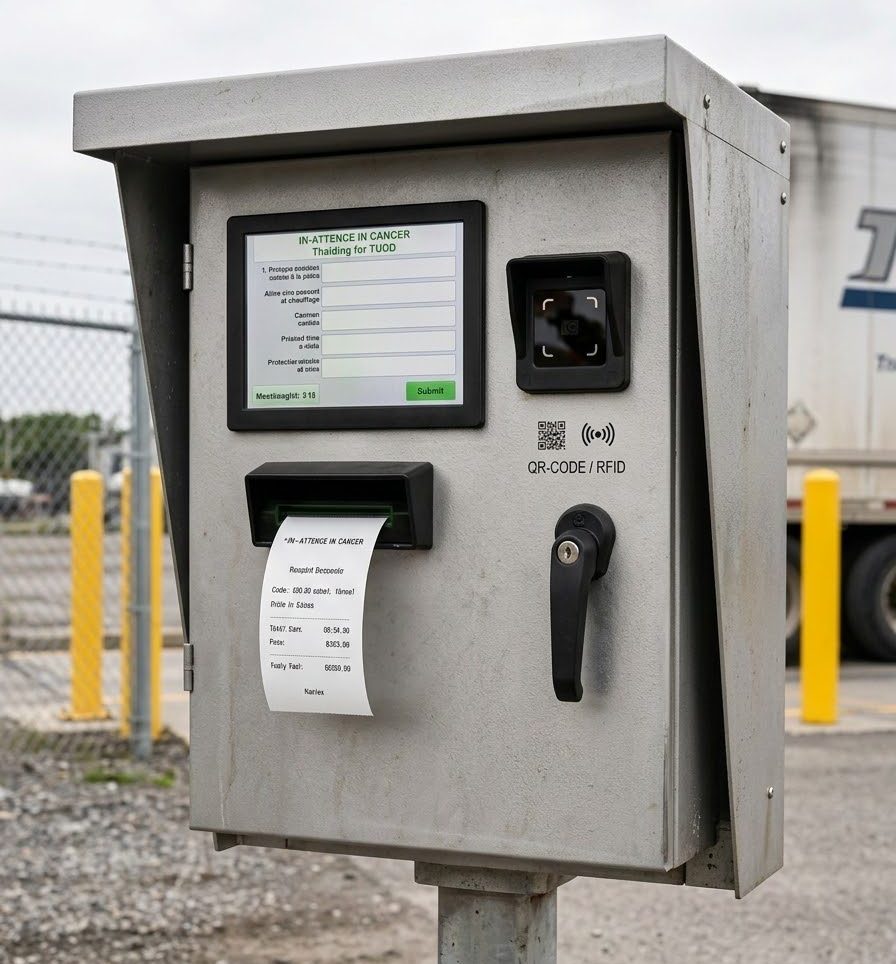

Outdoor driver terminal
Truck driver terminal
Outdoor self-service terminal for fully automated truck weighing. The driver completes the whole weighing from the cab, with no scale operator.
IP66
Enclosure
−30°C
Screen operating temperature
80mm
Print width (optional printer)
≈2000
Tickets per roll
QR/RFID
Optional reader
Position
One terminal on each side of the truck scale.
Operation
The driver completes the whole weighing from the cab. No scale operator needed.
Result
Improved safety; approximately 10–15 minutes saved per weighing.
Specifications
Technical specifications
Hood
- Protects the screen and components from sun, rain and snow
- Protects against mechanical damage caused by passing trucks or the opening of the driver’s door
Enclosure
- IP66 rated
- Thermal insulation, internal ventilation and heating
- Stainless steel
Screen
- Industrial-grade capacitive touchscreen
- Readable in direct sunlight
- Operates down to −30 °C
- Scratch and impact resistant
Scanner
- QR code scanner and RFID reader
- Helps prevent truck identification errors
- Dynamic filling of weighing transaction data
- Direct connection with accounting or ERP systems
Printer
- Direct thermal printing, print width up to 80 mm
- Large paper roll of approx. 2,000 tickets
- Ticket exit opening protected against dust and foreign objects
